MW15630T 2/5 dBi Omnidirectional Ceiling Antenna


Issuing time:2021-08-20 14:55

FeaturesandProductDescription


  Wideband,support2G/3G/4G

  LowPIM

  Highgain

  Highreliability

  RoHScompliant

ElectricalSpecifications

Frequencyrange(MHz)

698-960

1710- 2700

Polarization

Vertical

VSWR

≤1.8 (698-800   MHz)

≤1.5 (800-960   MHz)

≤1.5

Gain(dBi)

Approx.   2.0

Approx.   5.0

Horizontalhalf-powerbeamwidth(°)

360

Verticalhalf-powerbeamwidth(°)

85

55

PIM,3rdOrder(dBc)

-153(2x43dBmcarrier)

Averagepower,maximum(W)

50

Impedance(Ω)

50

Grounding

DCGround


MechanicalSpecifications

Dimensions(DxH)(mm)

Φ204*115

Packingdimensions(HxWxD)(mm)

182*182*78

Netweight(withinstallationkit)(kg)

≤0.4

Packingweight(kg)

≤0.6

Radomematerial

UVABS

Application

Indoor

Operatingtemperature()

-30to+45

Connector

4.3-10Female


InstallationSteps



1.   DrillaФ33 -Ф35holeontheceiling.

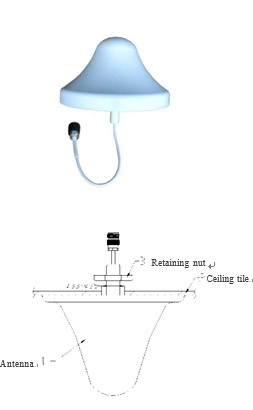

2. Installtheantennaasthefollowingpictureshowsthentightenthebolts.

3. Connectthe RFjumpertoantennaconnector.
