MW15638E Wall Mount Antenna


Issuing time:2021-08-20 14:59

FeaturesandProductDescription

  Wideband,support2G/3G/4G

LowPIM

    •   Highgain

    • Highreliability

  RoHScompliant

ElectricalSpecifications

Frequencyrange(MHz)

380- 800

800-960

1710-2700

Polarization

Vertical

VSWR

2.0

Gain(dBi)

3

3

5

Horizontalhalf-powerbeamwidth(°)

80

80

60

Verticalhalf-powerbeamwidth(°)

70

70

50

Fronttobackratio(dB)

5

8

10

PIM,3rdOrder(dBc)

-140   (2x33dBmcarrier)

Averagepower,maximum(W)

50

Impedance(Ω)

50

Grounding

DCGround



MechanicalSpecifications

Dimensions (HxWx D)(mm)

270x240x75

Packingdimensions(DxWxH)(mm)

320x245x90

Netweight(withinstallationkit)(kg)

0.8

Packingweight(kg)

0.9

Radomematerial

ABS

Application

Indoor

Operatingtemperature()

-30to+55

Connector

N-Female


InstallationSteps

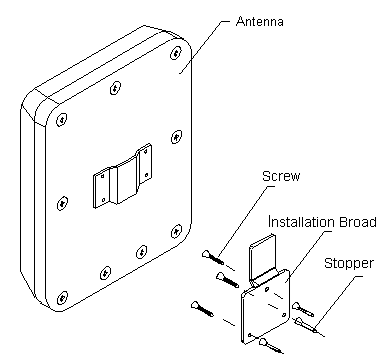

1. Punchthecorrectsizeholewiththedrill,andputthestopperintothehole,thenafterinstallingtheM4x25screw,fixthemintothestepper.

2.   Hangtheantenna ontheinstallationpieceandinstalltheconnector.
